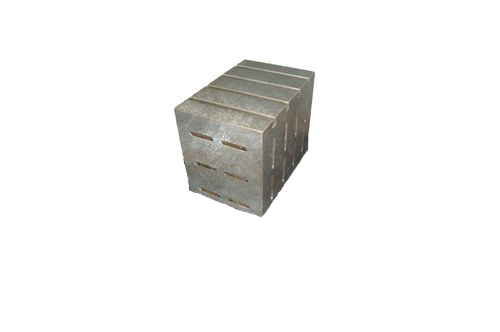

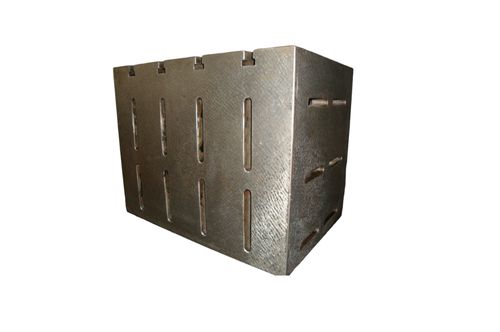

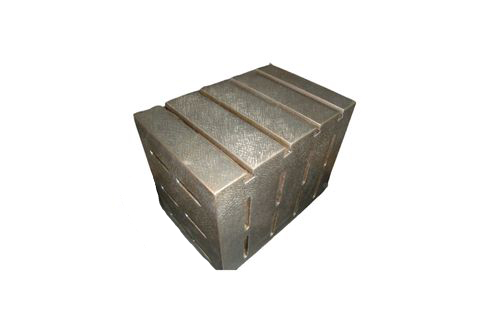

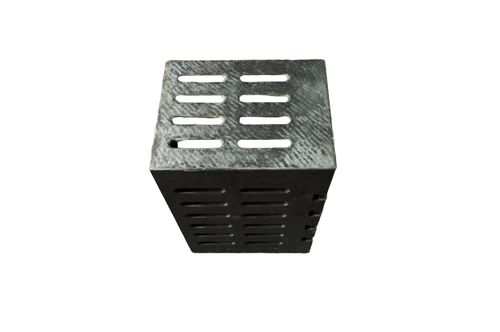

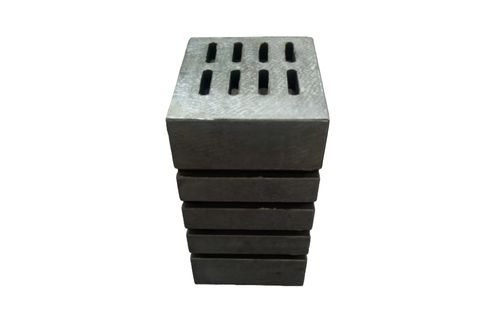

CAST IRON BOX ANGLE PLATE

Features

  •  Used for inspection , layout , tooling and machine set =ups, Also used as parallels, right angles or squares, make as per IS: 2632. Box angle plates in matched pairs offered upon request at extra cost, precision Box angle plate as per IS: 6985 can also be offered

Special sizes are available as per Requirement


Size LXBXH mm Flatness of working face (microns) Squareness of working face (Micron) Parallelism of opposite faces (Microns)s
175x100x125 4 12 15
250x150x175 8 15 18
350x200x250 8 18 20
450x300x350 10 18 20
