Confirms to IS: 7327-2002 and DIN: 876
Confirms to IS: 7327-2002 and DIN: 876
Quality and economy combined
Great Surface hardness and wear Resistance
Close Grain and uniform structure Black Granite high modules of rigidity

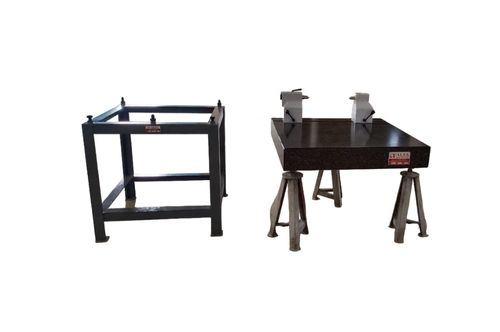

MS Fabricated stand with levelling provision
MS cupboard type stand with levelling provision
Stainless Steel Threaded insert, Steel T-Slot insert and Special type of insert, holes , bores etc…, are provided as per requirement
Rexene cover
Special sizes are available as per Requirement
| SI NO | CAT NO | Surface Plate dimension | Grade 0 Accuracy As per IS: 7327-2003 |
| 1 | AMT-01 | 400x400x70 | 5 |
| 2 | AMT-02 | 630x400x80 | 5 |
| 3 | AMT-03 | 630x630x80 | 5 |
| 4 | AMT-04 | 800x500x100 | 5 |
| 5 | AMT-05 | 1000x630x150 | 6 |
| 6 | AMT-06 | 1000x1000x150 | 7 |
| 7 | AMT-07 | 1200x900X150 | 7 |
| 8 | AMT-08 | 1200x800x150 | 7 |
| 9 | AMT-09 | 1600x1000x200 | 8 |
| 10 | AMT-10 | 1200x1000x150 | 8 |
| 11 | AMT-11 | 1200x1200x150 | 8 |
| 12 | AMT-12 | 2000x1000x200 | 10 |
| 13 | AMT-13 | 2000x1500x200 | 10 |
| 14 | AMT-14 | 2500x1000x200 | 11 |
| 15 | AMT-15 | 3000x2000x250 | 14 |
